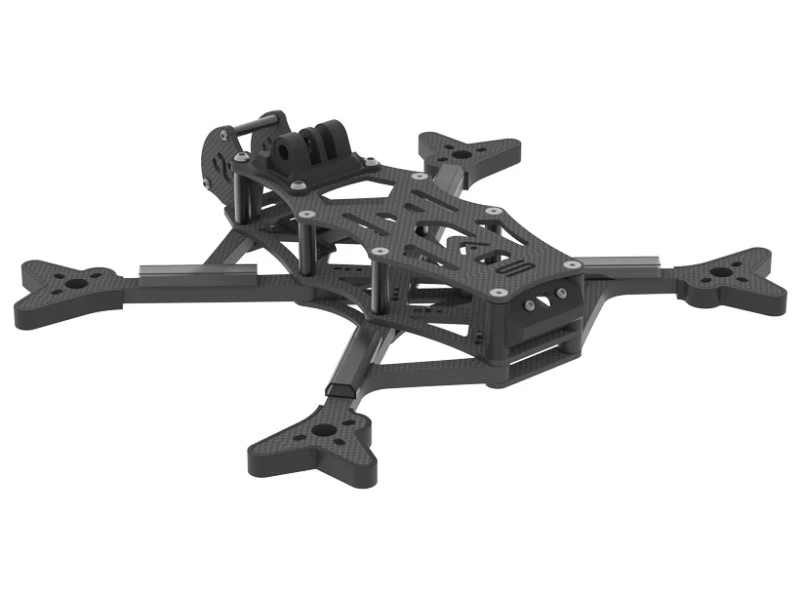

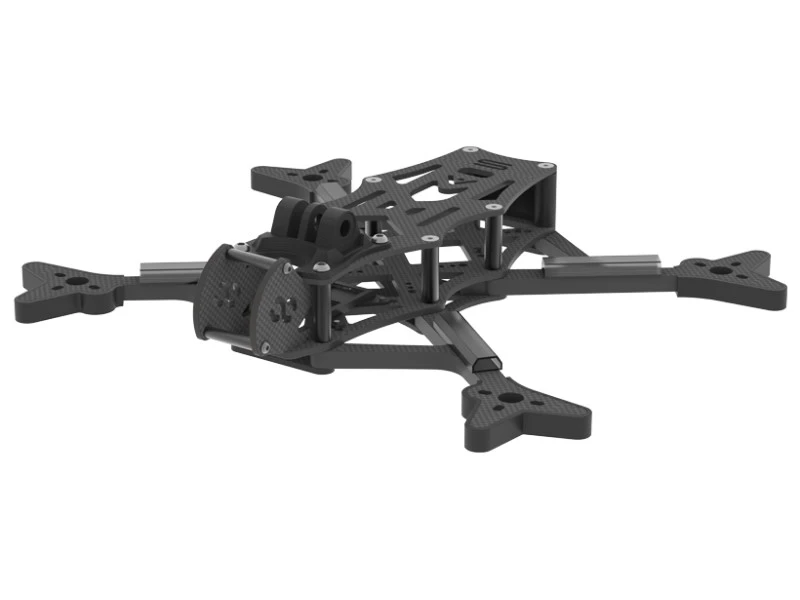

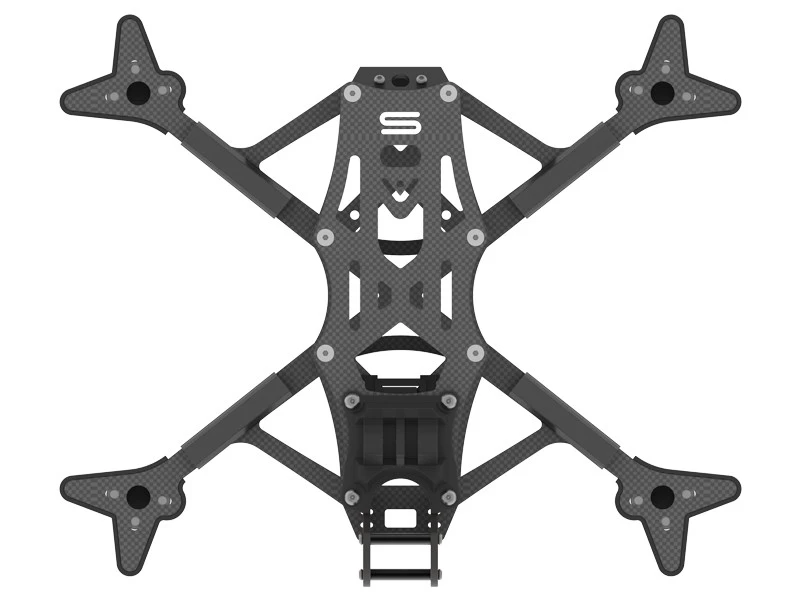

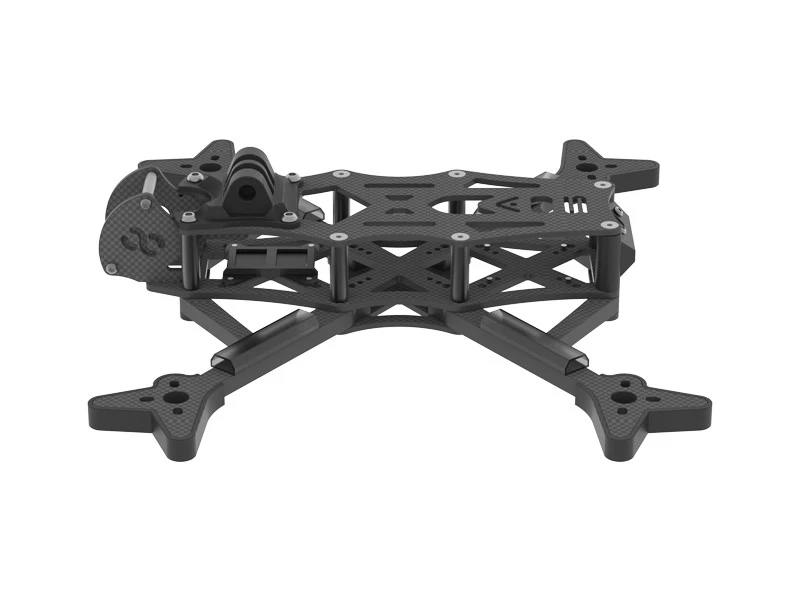

AOS 5 O3 EVO Frame Kit

Built to be the ultimate 5″ freestyle platform. The AOS 5 O3 has been updated to be compatible with the new DJI O3 Air Unit as well as existing 30.5×30.5mm, 25.5×25.5mm and 20x20mm electronics. The camera cage and arms have been reinforced to improve durability. As with all AOS frames exceptional vibration and resonance performance is guaranteed, eliminating IMU resonance issues with O3 image stabilization.

Build notes: If building with an O3 Air Unit, we would suggest to use a 20×20 stack instead of a 30×30 as you will touch the O3 Air Unit (unless if placed at the front).

Specifications:

• Frame wheelbase: 220mm
• Frame Dimension: L175*W135*H32.5 mm
• Arm Thickness: 6mm
• Top Plate Thickness: 2mm
• Bottom Plate Thickness: 2.5mm
• Upper Plate Thickness: 2mm
• Motor Mounting: 16x16mm up to 19x19mm
• VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm
• Fits the DJI O3 Air Unit, Caddx Vista or HDZero Freestyle VTX perfectly
• Fits both 20mm (DJI and O3 camera) and 19mm (Micro sized) cameras
• 30.5×30.5mm, 25.5×25.5 or 20×20 mm stack mountings in the front, centre and rear.

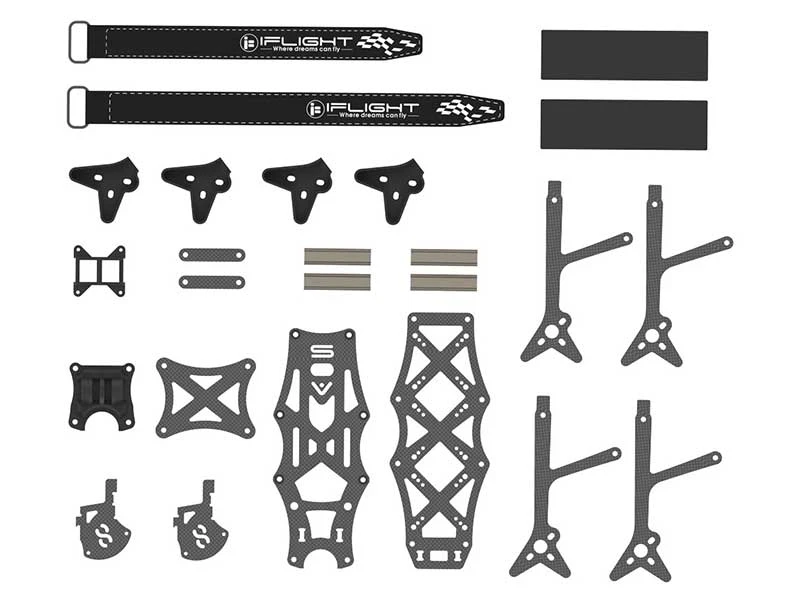

Package:

• 1 x AOS 5 O3 Frame Kit
• 1 x TPU Parts
• 4 x Motor Wire Shield Tube
• 1 x Screw Bag
• 2 x Battery Strap
