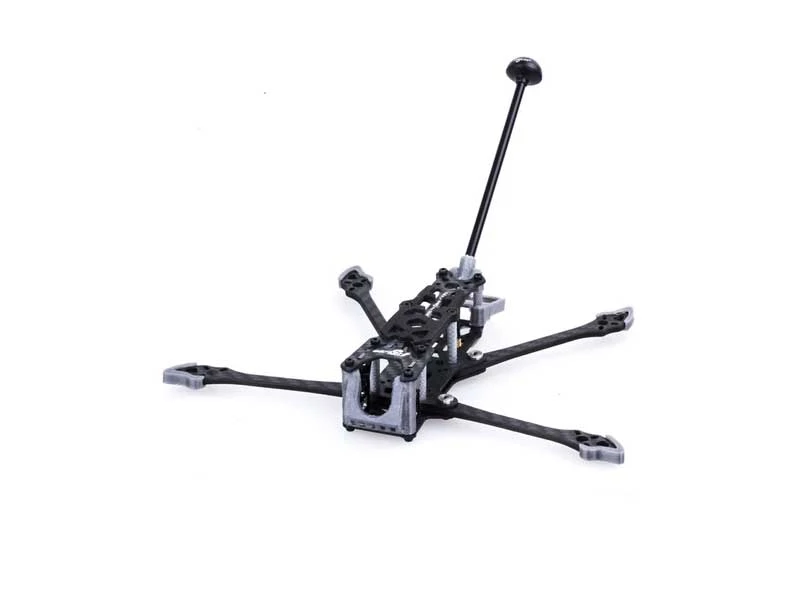

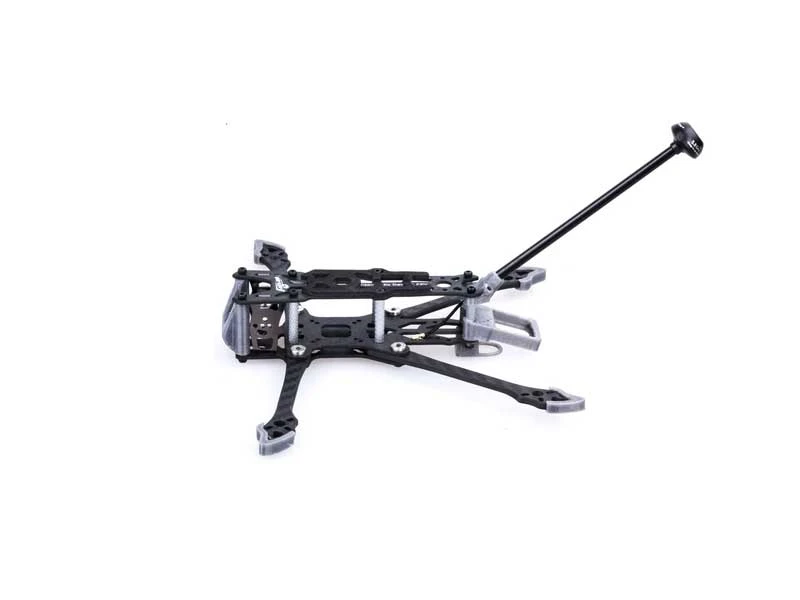

Flywoo Explorer LR 4” Analog Frame Kit V2

Collaboration between Flywoo & Dave_C for a sub250g 4″ long range frame compatible with Analog and DJI FPV Version.

This kit comes with the NEW top plate allowing to mount your battery sideways for more angle clearance when using a GoPro or HD camera.

Note: The only difference between Analog and DJI version is the included antenna (RHCP vs LHCP). This is the “Analog” version with RHCP antenna.

Specifications:

• Co-Brand :Flywoo & Dave_c
• Item Name: Explorer LR 4 Inch Frame Kit
• Material: 100% 3K carbon fiber + 7075 aluminium alloy
• Thickness of arms: 3mm
• Thickness of top plate: 1.5mm
• Thickness of bottom plate: 1.5mm
• Weight: 41g

Package:

• M2*5: 8pcs
• M2*7: 8pcs
• M2*8: 6pcs
• M2*12:12pcs
• Aluminum Standoffs M2*20: 4pcs
• Aluminum Standoffs M2*25: 2pcs
• TPU 3D Printed Parts :1 package
• Flywoo Atomic 5.8G UFL Ant * 1 (RHCP)

Recommended parts (NOT INCLUDED):

• 16×16 or 20×20 M2 stacks
• NIN 1404 V2 2750KV
• Gemfan 4024 props
• GPS
• VIFLY Finder 2 Buzzer
• VTX with UFL connector
• Nano camera

Assembly manual here

Recommended batteries: 4S 750-900 XT30
