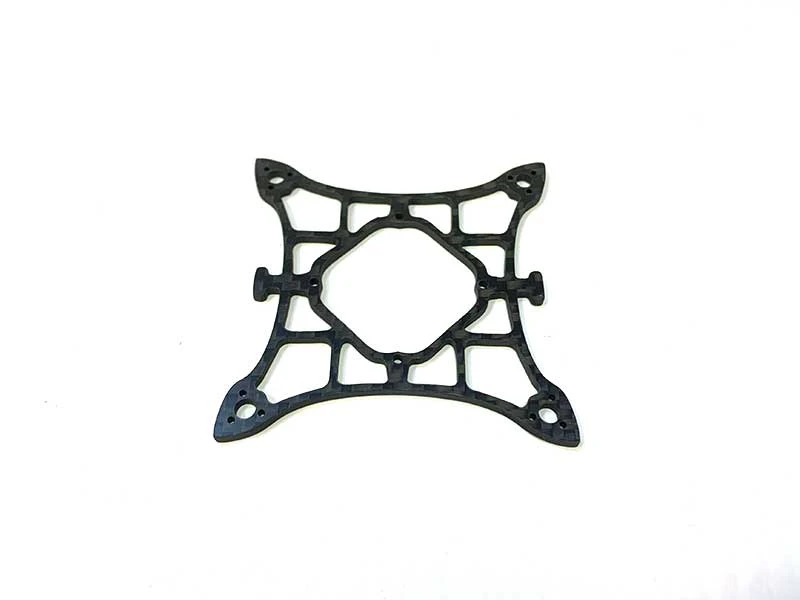

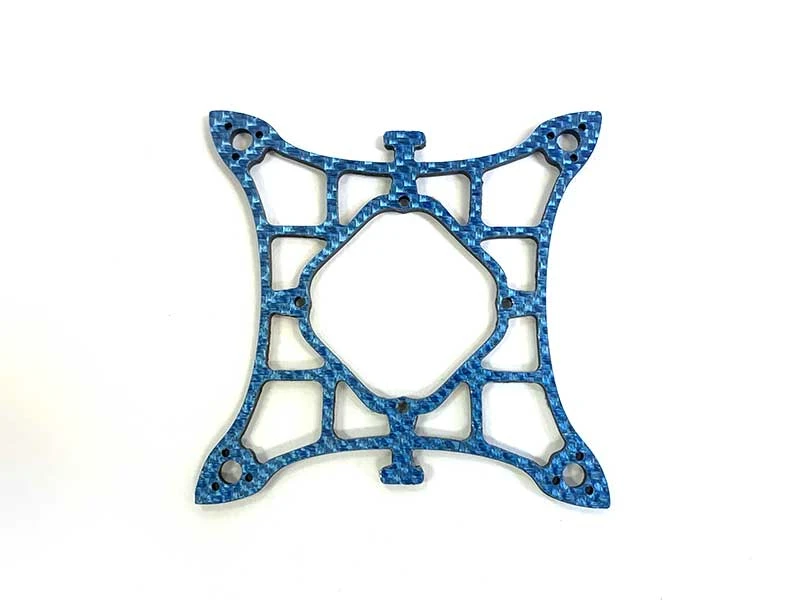

Rotorgeeks Bluejay 82mm Frame

Designed to run an AIO whoop board, 1102-10000kv motors and 2S power on 2″ props. Follow this formula and you’ll have a quiet, super fast little ripper than can run for 4-8 minutes.  The frame is 2.5mm thick so you’ll need longer than standard motor mounting screws (an available option). The little tabs on the side are there to conveniently install an elastic band. The 82mm motor-to-motor distance gives enough clearance between the props and the FC to reduce damage from bad crashes.

Specifications:

• Weight: 5g
• Body thickness: 2.5mm
• Fits 2″props max (82mm motor to motor)
• 3 hole version for Happymodel/standard whoop 08xx/11xx 6.6mm 3 hole mounts
• Fits Whoop sized board

Package:

• 1x Rotorgeeks Bluejay frame
• 1x Hardware kit (optional):
  • 4x M2x2mm TPU spacers
  • 3x M2x14mm screws
  • 1x M2x12mm screws
  • 4x M2 locknuts
  • 15x M1.4x4mm motor screws
