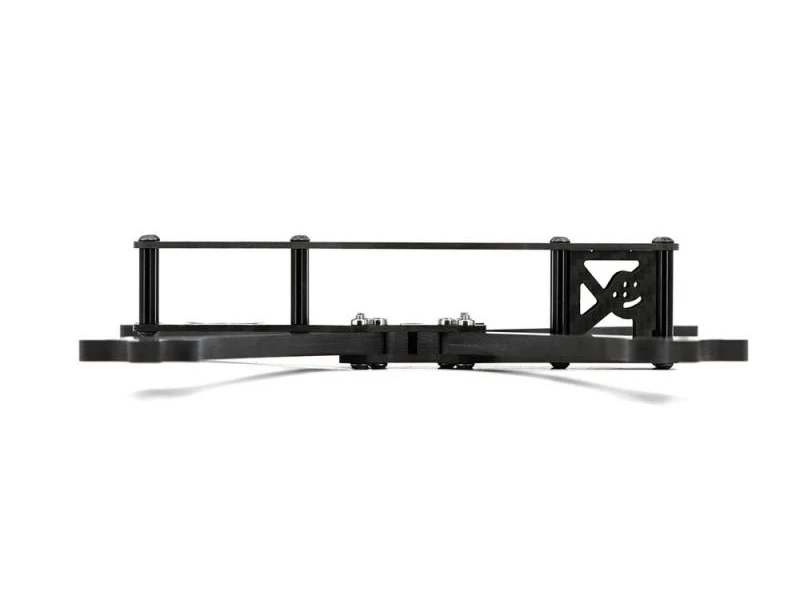

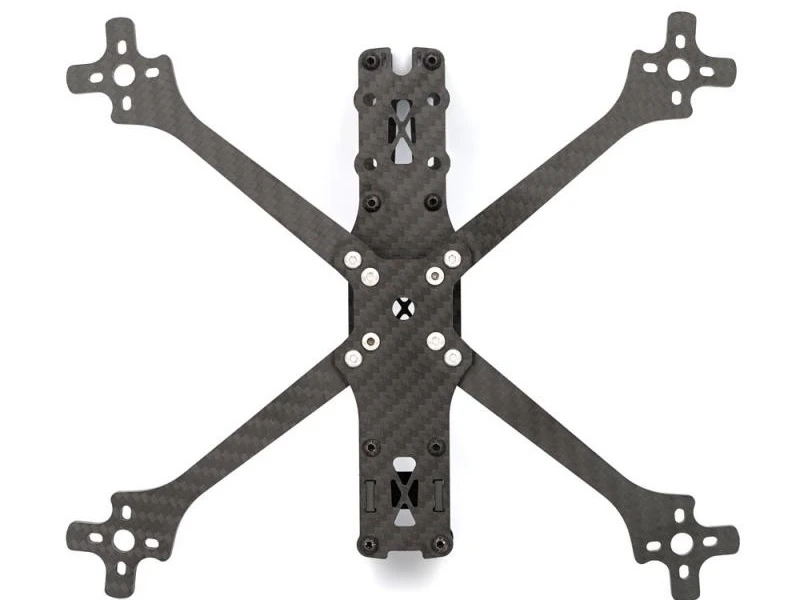

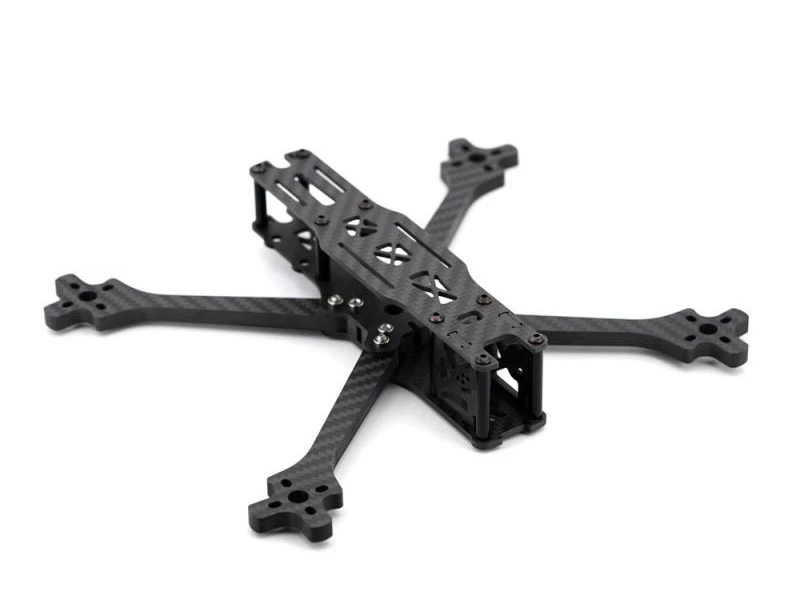

TBS SOURCE ONE V5 5inch

The SOURCE ONE is a wide-stance X configuration frame, popular for freestyle or free-range acrobatic flying. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for light weight. The SOURCE ONE is a perfect everyday workhorse for casual FPV flying and competitive freestyle.

This is the V5 frame compatible with Analog and HD gear.

About the project:

The SOURCE ONE project is a first of its kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product.

The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people’s intellectual property.

Specifications:

• Wheelbase 5″: 226mm
• Top plate: 2mm
• Middle plate: 2mm
• Bottom plate: 2.5mm
• Camera plate: 2mm
• Standoff height: 30mm and 22mm
• Arm thickness 5″: 6mm
• Stack Mounting: 30.5 × 30.5mm & 20 x 20
• Weight 5″: 123.5g

Package:

• 1x Frame
• 16x M3x10 allen screw
• 4x M3x12 allen screw
• 4x M3x14 allen screw
• 4x OD 5mm M3x30mm standoff
• 4x OD 5mm M3x22mm standoff
• 8x M3 press insert nut

Get involved!

• Project discussion
• Project files
• Interactive Manual (work in progress)
• 3D Printed files on Thingiverse (also available on github!)
