The Stick

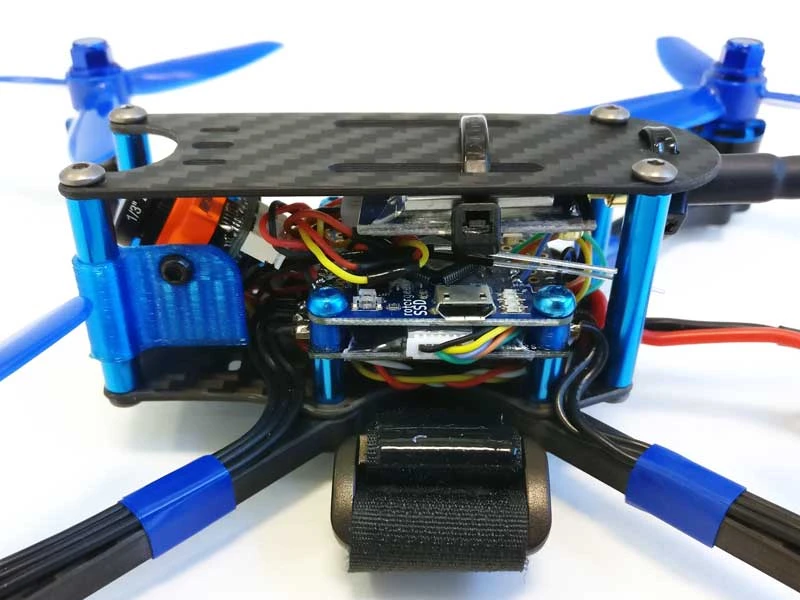

The Stick is based on narrow 5mm thick arms supporting the new, powerful 1407 motors.  This design provides a very rigid and strong structure with minimal drag for the highest level of performance.  In addition to aerodynamic advantages, individual arms allow the carbon to be cut for maximum strength compared to unibody frames.  The frame accomodates a full size FPV camera using the available TPU camera mounts or the provided holes on the top or bottom plate in conjunction with the bracket included with most cameras (does NOT fit Swift Mini bracket, which takes up more space than a standard camera).  Battery loop straps are provided on the bottom plate, as are multiple points for zip ties for antenna, battery cable and other wires.  We recommend a 4in1 ESC for the cleanest setup.  By placing the receiver on the bottom, then 4in1, then control board, there is plenty of room for a vtx to be mounted under the top plate.

• extremely light (see chart below)
• Chamfered carbon fibre – beautiful smooth edges won’t cut wire or battery straps

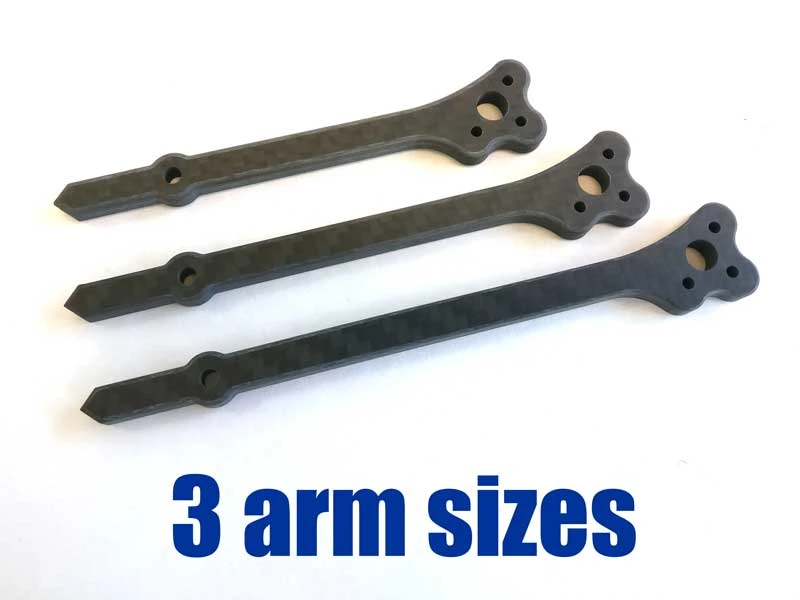

• replaceable 5mm arms – can be swapped between 3″, 4″ and 5″ versions
• top, bottom and battery plate in 1.5mm CF

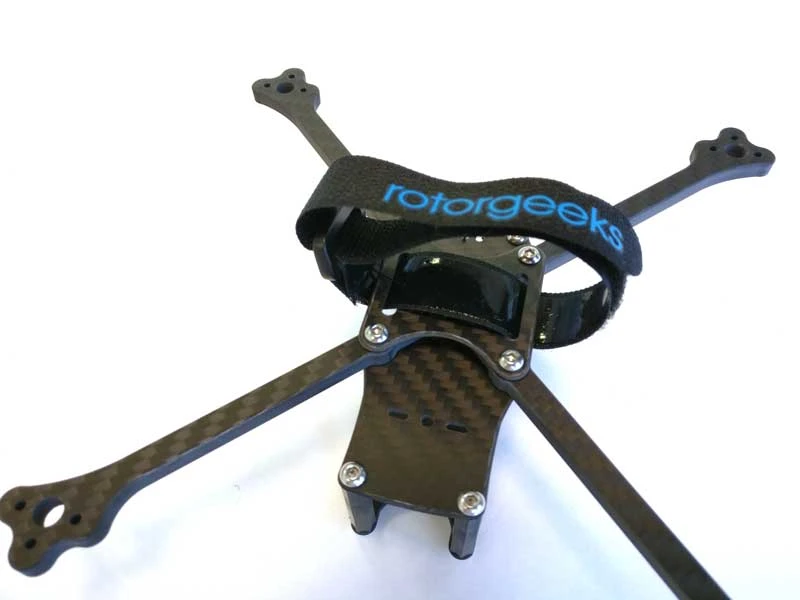

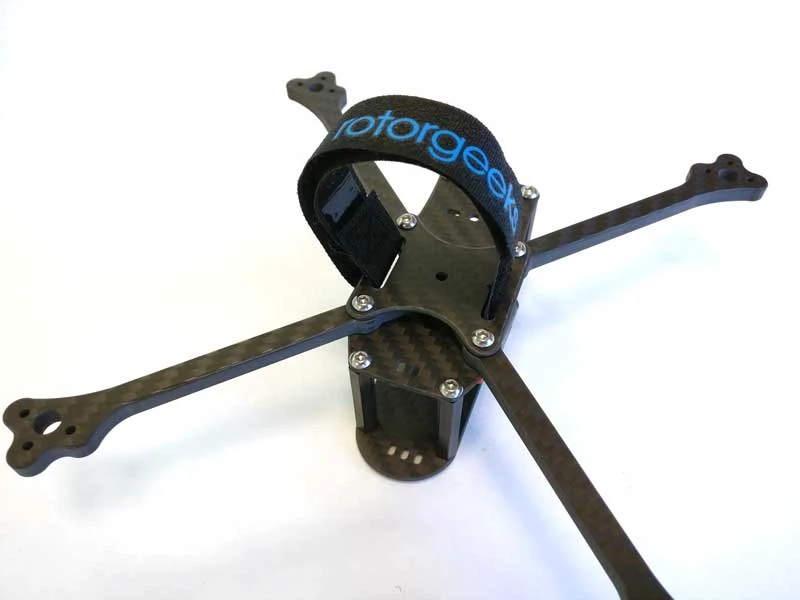

• battery strap loop integrated into bottom plate
• takes full size camera
• 30mm spacer height allows an easy to build stack
• 12×12 M2 motor mount holes (standard for 13XX / 14XX, 15XX)

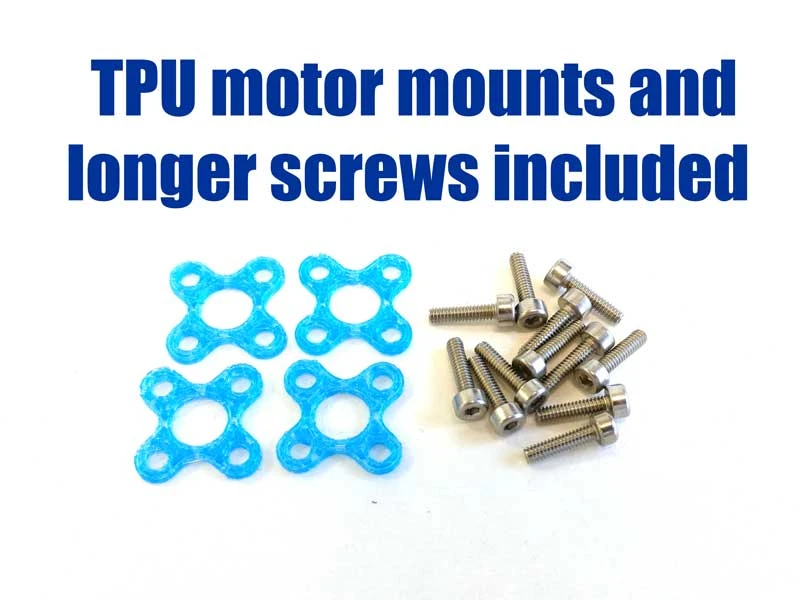

• comes with 12pcs M2x8 motor mount screws and a set of 4 TPU motor mounts for spacing and vibration isolation
• now comes with ‘universal’ TPU camera mount
• 30.5×30.5mm stack

Assembly guide here

A titanium screw upgrade kit is available for the frame screws (not motor screws) and reduces weight by 2.3g

Weights (with all hardware except motor screws)

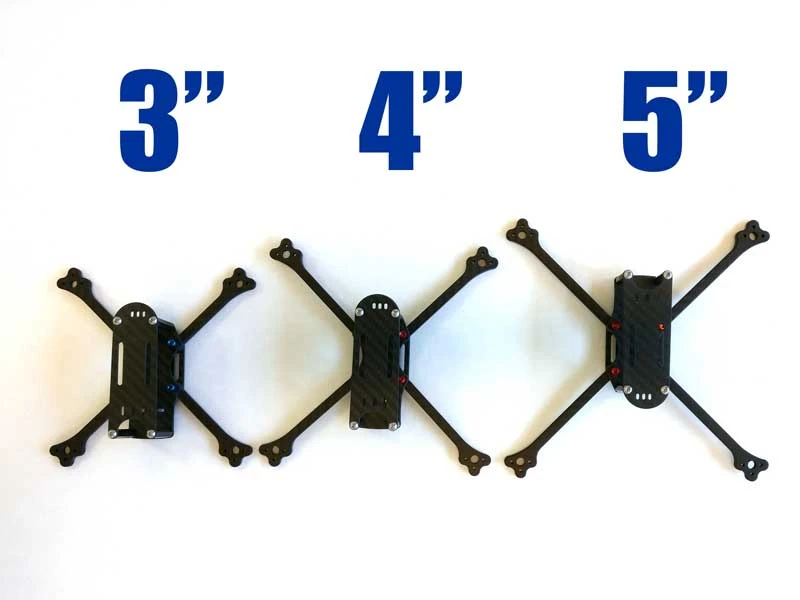

Size	Weight	Weight w/Titanium kit	Diagonal motor to motor distance
3″	43g	41g	162 mm
4″	46g	44g	191 mm
5″	49g	47g	218 mm
